Pulsed-laser Equipped High-Voltage Electron Microscope
*shutdown

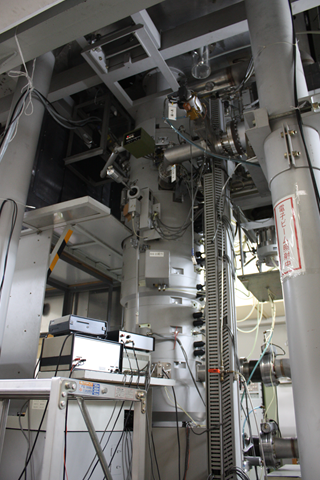

Pulsed-laser Equipped High-Voltage Electron Microscope
レーザー超高圧電子顕微鏡(H-1300)

Instrument : H-1300

日立製作所

設置場所 : EM棟1階

Specification

Accelerating voltage:1000kV(最大1300kV)

Resolution:0.14nm(top entry), 0.20nm(side entry)

Available attachment

Double tilt holder

Piezo driven indentation holder

Double tilt heating holder

Nanosecond pulse YAG laser

Primary use

Observation of thick film samples

In-situ observation of microstructural change during heating processes

In-situ observation of electron irradiation effect

In-situ observation of deformation behavior under applied stress
