Multi-beam Ultra-high Voltage Electron Microscope(ARM-1300)

Multi-beam Ultra-high Voltage Electron Microscope(ARM-1300)
マルチビーム超高圧電子顕微鏡(ARM-1300)

Instrument : JEM-ARM-1300

Specification

Accelerating voltage:1250kV(max 1300kV)

Point-to-point resolution:0.118nm

Attachment

Double tilt holder

Double tilt heating holder

Double tilt liquid nitrogen cooling holder

Ion accelerator (H+, He+, Ar+, Ne+)

Ion accelerator (Ti+, Ni+, Fe+, Ag+)

CCD camera

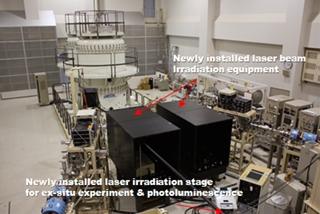

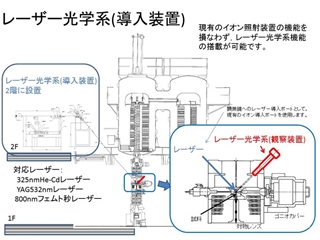

Laser equipment (Continuous Wave He-Cd laser/Nanosecond pulsed YAG laser/Femtosecond pulsed laser)

Primary use

Observation of ultra-high resolution structure image and lattice image

Observation of thick film sample

In-situ observation of microstructural change during heating/ cooling processes

In-situ observation of ion implantation/radiation damage behaviors
